Water radiator KART RACING “JUNIOR”, Aluminium, Single circuit

56,00 44,00 IVA esclusa

Out of stock

SKU: KR-080S Category:


  • Water radiator KART
  • Alluminio, Singolo circuito
  • Racing “JUNIOR”

Cod. KR-200T

Constructive System: TW1-32


  • Radiator Overall dimensions*: 301 x 115 x 49 [mm]
  • Core size: 220 x 114 x 32 [mm]
  • Total Weight: 0,3 [kg]

* excluding brackets and filler cap

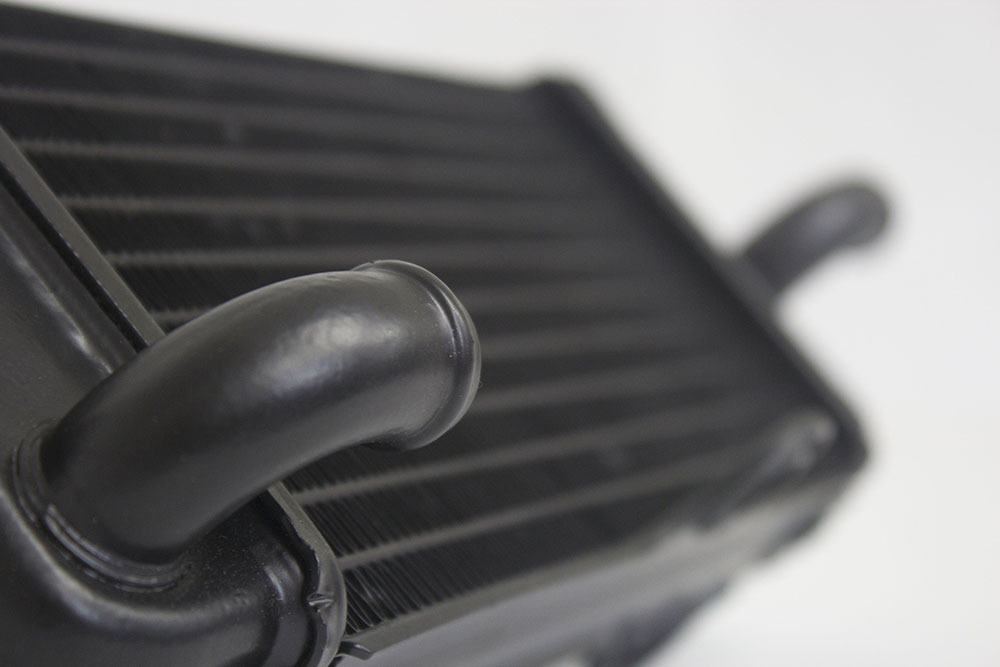

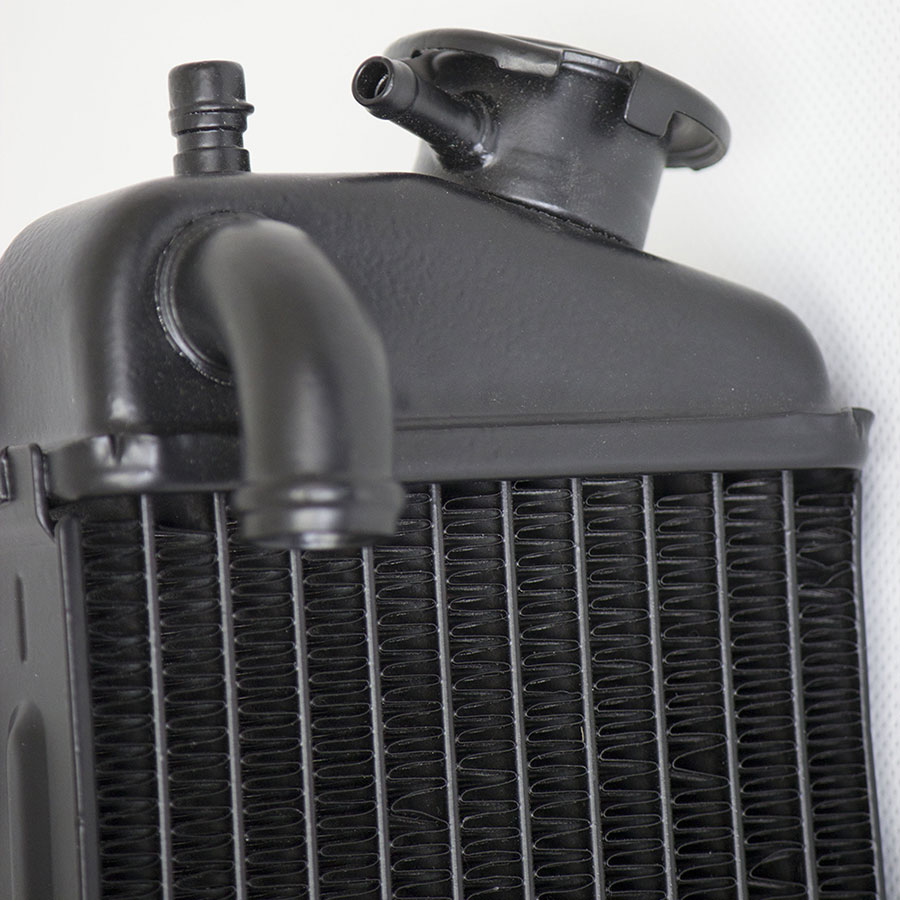

The water radiator KART RACING “JUNIOR” is specially designed for professional and amateur use.

Made by the exclusive technology “Lightened Aluminium” and assembled by “CAB” brazing processes, this SINGLE CIRCUIT cooling kart radiator, is designed for karts with smaller engine sizes (up to 90cc).

Directly from the world of bike racing, the water radiator KART RACING “JUNIOR”, has equipped with molded side plates, whose profile includes the asymmetrical mounting brackets.

The side plates are first crimped to the kart radiator and then welded, gives to the water radiator KART RACING “JUNIOR” unique qualities of resistance to vibrations.

The water radiator KART RACING “JUNIOR” is equipped with metal filler cap with vent, 0.9 bar pressure.

For more technical characteristics, please refer to the table in this section.
Dimensions are always given in [mm] and in the following order: height x width x thickness.

Additional information

Weight 4 kg
