Sale!

PROMO Water radiator KART RACING “STD – I TYPE”, Aluminium, Single circuit

 79,00  53,00 IVA esclusa

Out of stock

SKU: KR-110S Category:

Description

  • Water radiator KART
  • Aluminium, Single circuit
  • Racing “STD – I TYPE”

Cod. KR-110S

Constructive System: TW1-32

TECHNICAL FEATURES

  • Radiator Overall dimensions*: 400 x 190 x 45 [mm]
  • Core size: 325 x 190 x 32 [mm]
  • Total Weight: 1,15 [kg]

* excluding brackets and filler cap

OFFER FOR LIMITED QUANTITY

Description

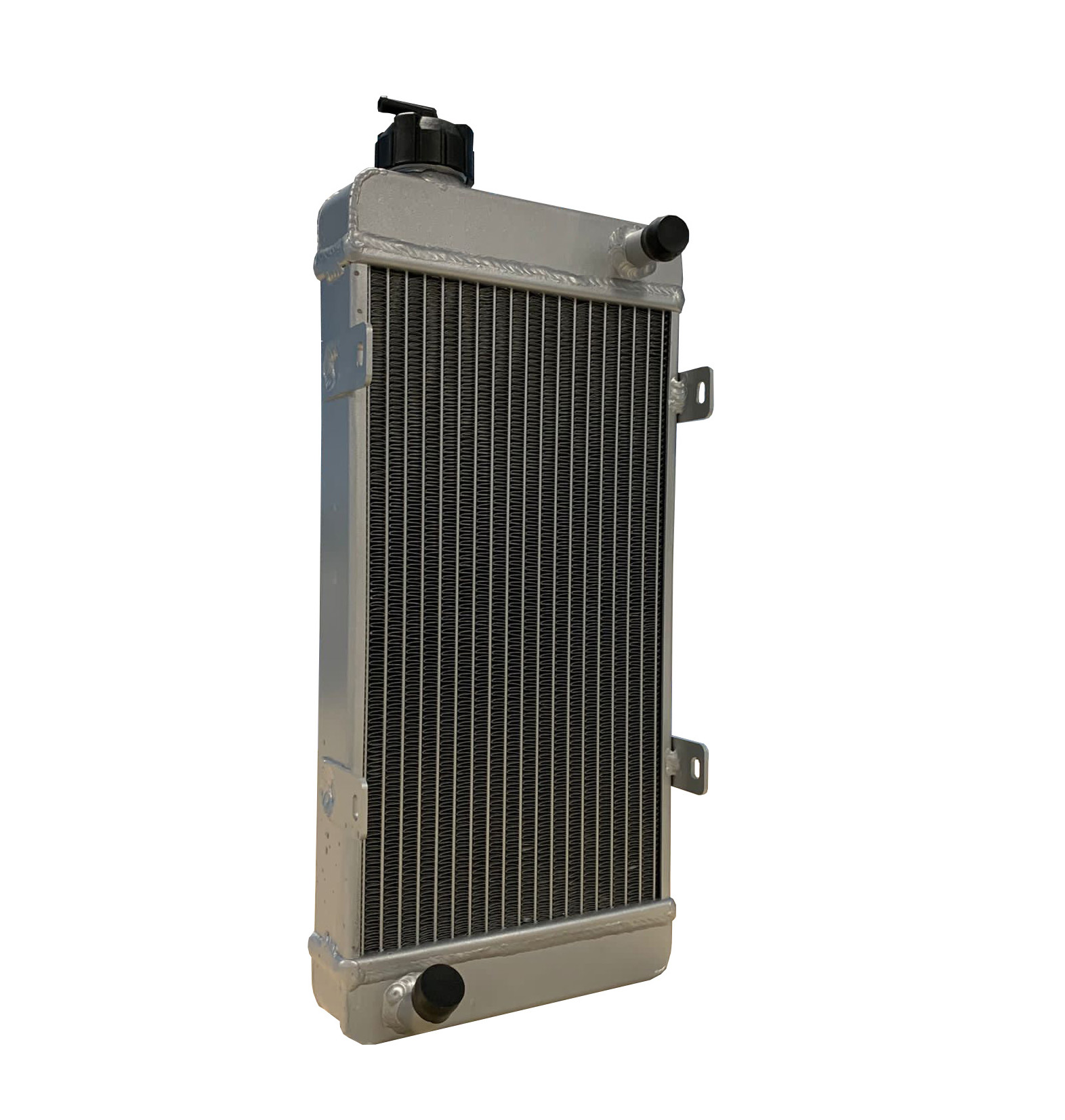

The water radiator KART RACING “STD – I TYPE” is specially designed for professional and amateur use.

Made by the exclusive technology “Lightened Aluminium” and assembled by “CAB” brazing processes, this SINGLE CIRCUIT cooling kart radiator, represents the “entry level” model into the kart racing world.

As the upper class radiators, it owns first level characteristics of hardness and performance.

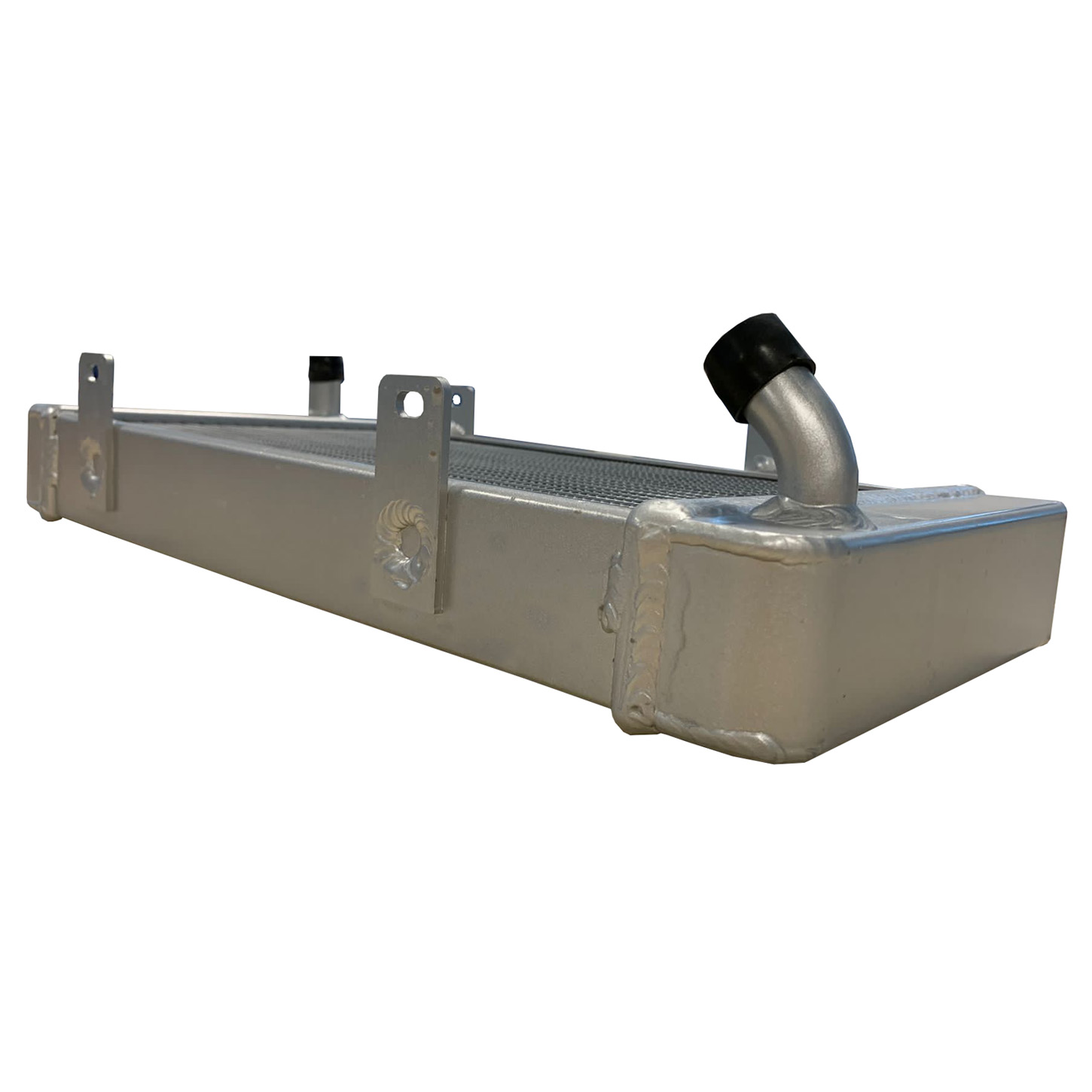

The water radiator KART RACING “STD – I TYPE” has equipped with side plates, which are welded and riveted four mounting brackets with increased thickness, specially prepared for connection to the kart radiator frame supports (not included).

This particular processing, gives to the water radiator KART RACING “STD – I TYPE” unique qualities of resistance to vibrations, making it also suitable for mounting on any type of kart with liquid-cooled engine.

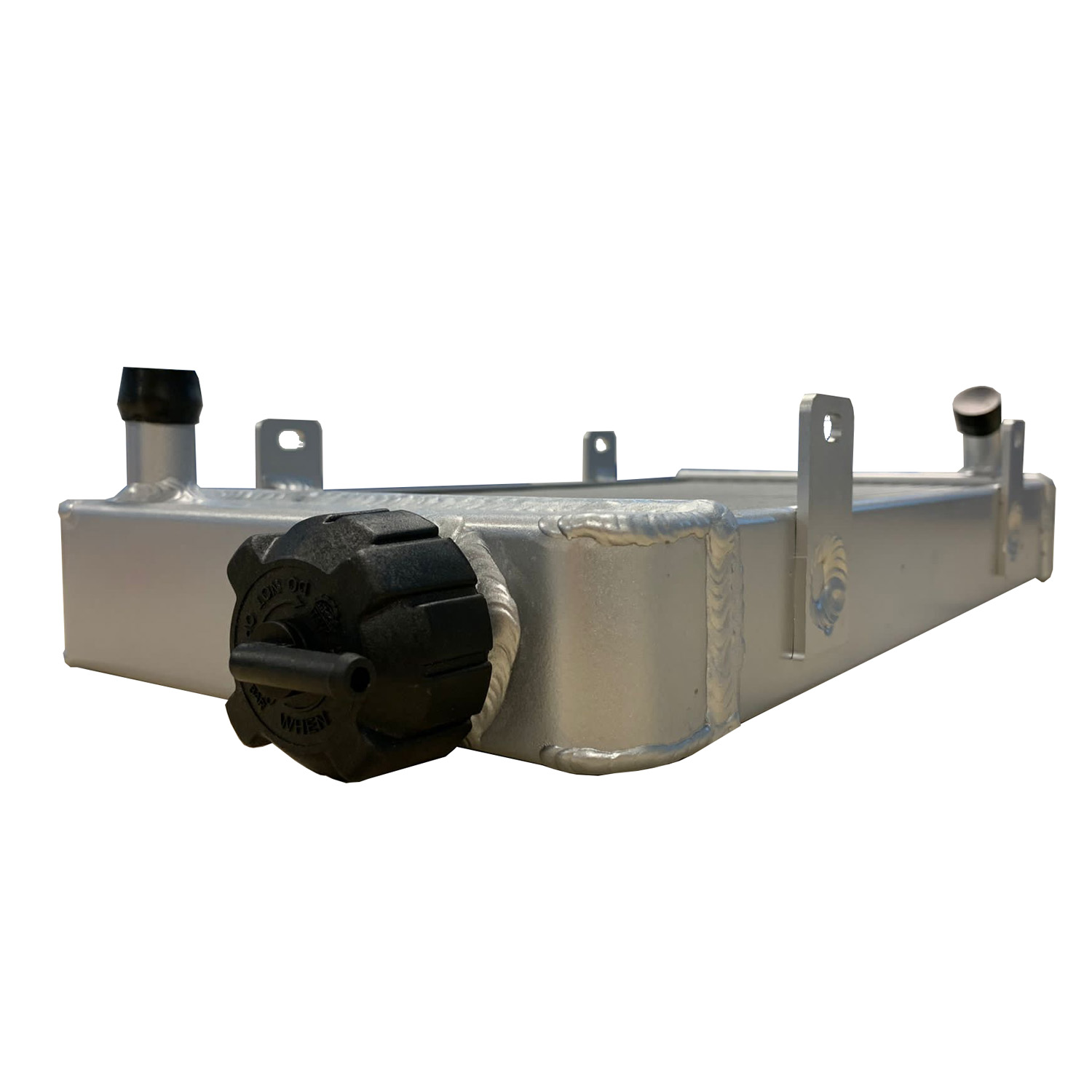

The water radiator KART RACING “STD – I TYPE” is equipped with 1” plastic filler cap with vent, 1 bar pressure.

For more technical characteristics, please refer to the table in this section.
Dimensions are always given in [mm] and in the following order: height x width x thickness.

This radiator can be protected by powder coating surface treatment (optional).

Additional information

Weight 4 kg
